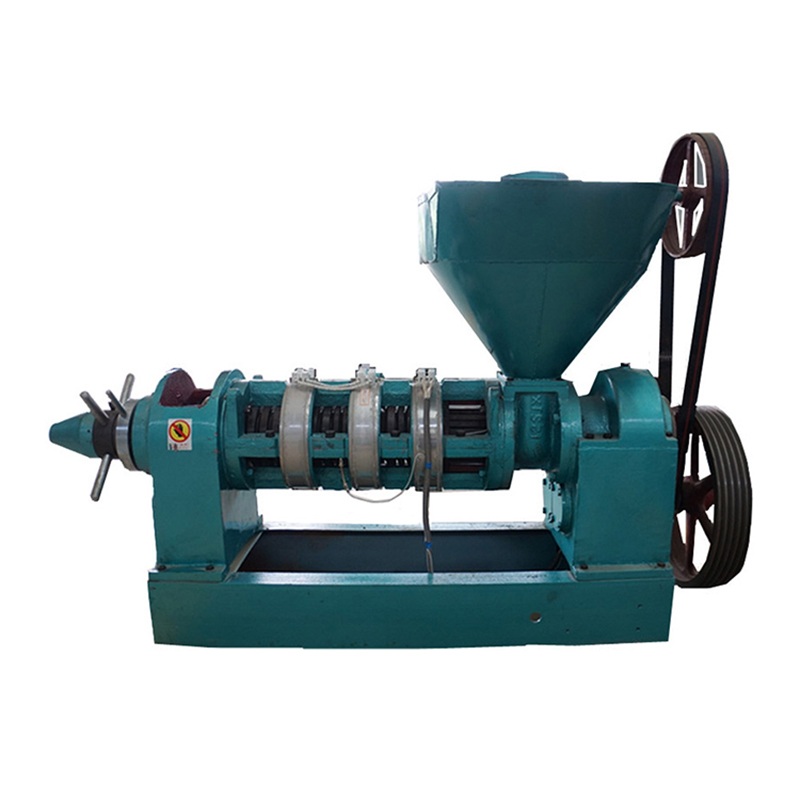

YZYX130WK temperature control oil press machine

Model： YZYX130WK
Capacity (T/24h)： 8
Power (KW)： 15 or 18.5
Weight (KG)： 825
Size (mm)： 1950*742*1500
Package： Standard package
Payment： L/C, T/T, D/A, D/P, O/A, Paypal
INQUIRY

Our series YZYX130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.

YZYX130WK is basic 2-step-squeezing spiral oil press.

YZYX130-2WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.

YZYX130-9WK is 3-step-squeezing spiral oil press with lengthened squeeze chamber.

YZYX130-10WK is 4-step-squeezing spiral oil press. The pressure in its squeeze chamber is bigger; therefore, the squeezing efficiency is higher.

Main Features:

Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.

Oil Plants	Processing Capacity(t/24h)	Oil content of Dry cakes (%)	Oil yield efficiency (%)	Electric power consumption (kw.h/t)
Rapeseed	≥8.0	≤7.6	≥82	≤34
Cotton seeds	≥8.0	≤6.8	≥77	≤54
Soybean	≥8.0	≤6.5	≥67	≤51
Peanut	≥8.0	≤6.5	≥92.3	≤34

Note:

① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

Technical Specification:

Item	YZYX130(-2)WK	YZYX130-8(12)WK	YZYX130-9(12)WK
Revolving speed of spiral axis (r/min)	32～44
Transmission type	Triangle belt Transmission
Power required（kw）	15（Y160L-4）or 18.5（Y180M-4）
Power of heater（kw）	≥3.0
Measurement (mm)	1950×742×1500	2020×742×1420	2100×798×1400
Weight (kg)	825	886	980
