Single Oil Press

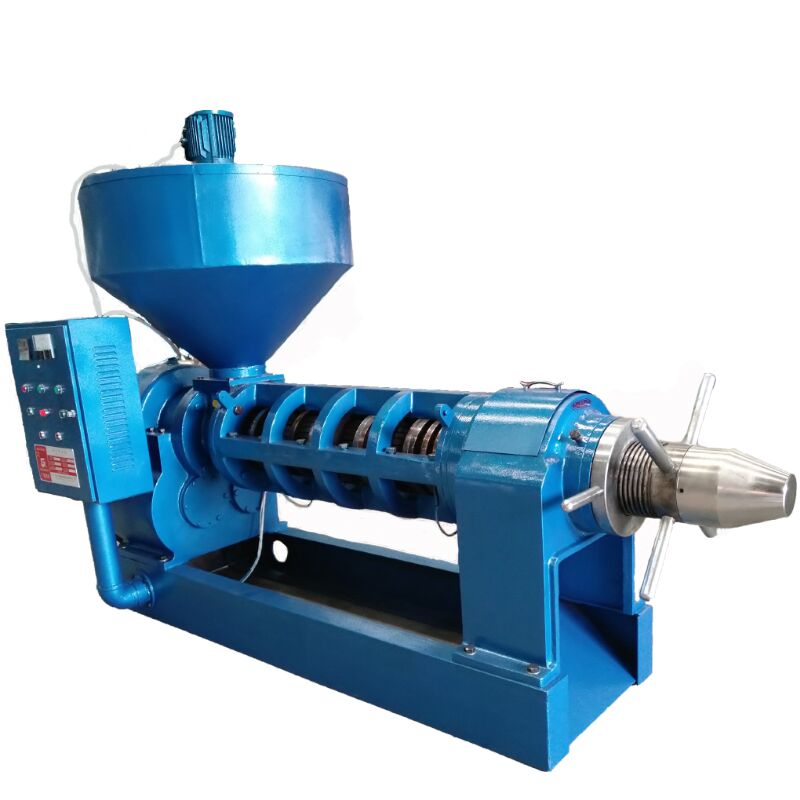

YZYX168P Palm Oil Press Machine

Model： YZYX168P
Capacity (T/24h)： ≥20
Power (KW)： 30 or 37kw
Weight (KG)： 1700
Size (mm)： 2650*1100*1830
Package： Standard package
Payment： L/C, T/T, D/A, D/P, O/A, Paypal
Enquiry

YZYX168P automatic temperature control palm oil press is a big capacity model developed by our company to meet market demand and specially for palm oil extraction.

The thickness of the cake could be adjusted by adjusting the pressure in the press chamber through the elastic device, so that the palm kernel won’t be crushed easily. It can keep the palm kernel in complete shape thus convenient for subsequent processing.

Moreover, it is equipped with heater on the squeeze cage and in the main shaft, which is for warming up the machine before feeding and heating the machine during pressing oil, the oil yield will be impoved.

YZYX168P is easy to operate and its structure is compact so takes small ground.

Main Specification:

Model No.	YZYX168P
Processing Capacity(t/d)	≥20
Rotation speed (r/min)	15-20
Oil Pressing Motor (KW)	30 or 37（6poles）
Heating Power (KW)	3.4
Feeding Motor(KW)	0.55
Measurement(mm)	265011001830
Weight（kg)	1700(excluding motor)

Note:

① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
