Single Oil Press

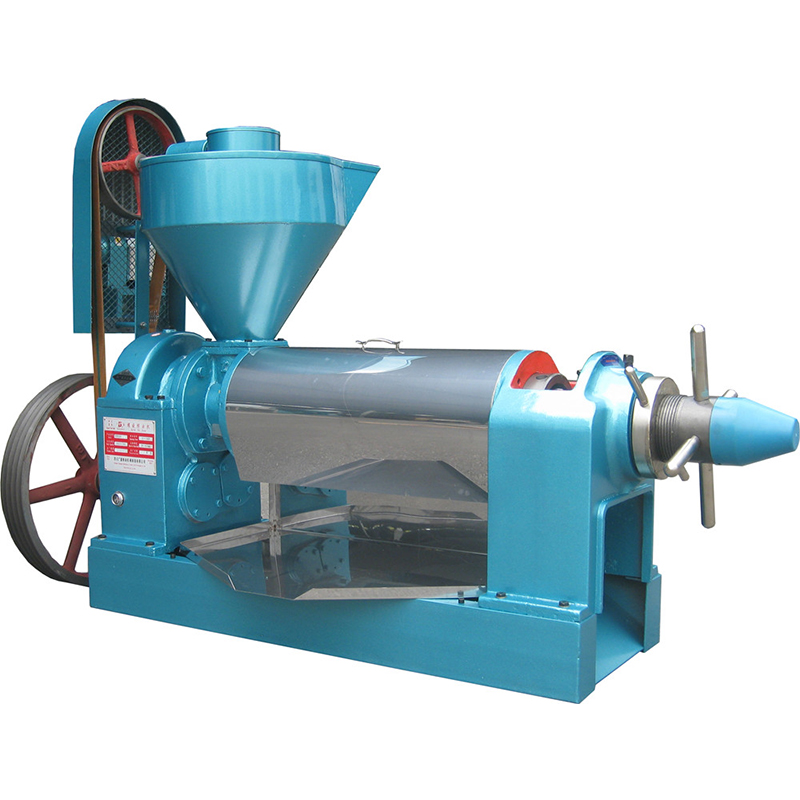

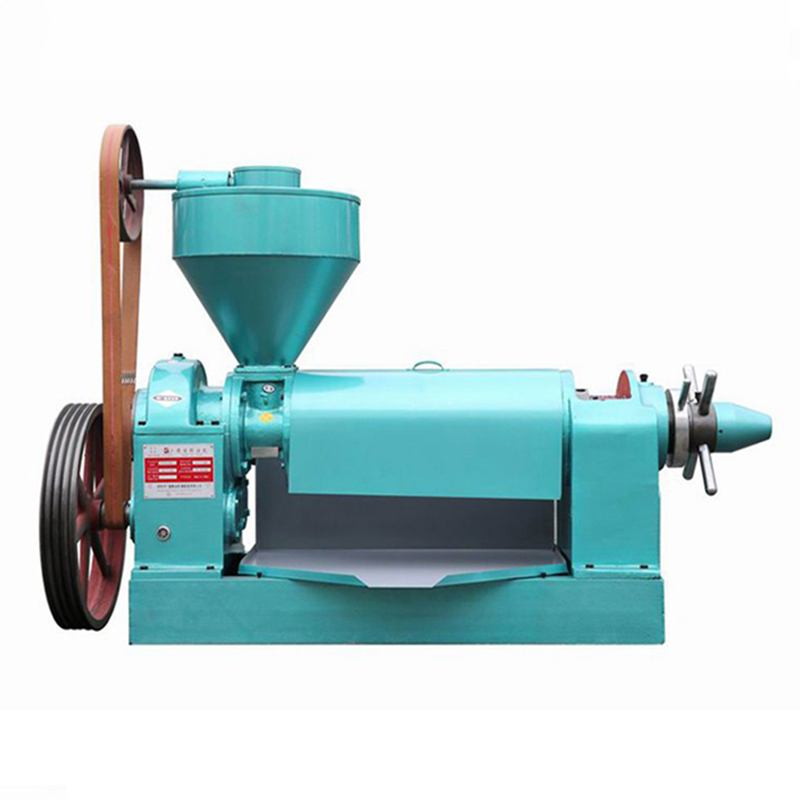

YZYX120 Oil Press Machine

Model： YZYX120
Capacity (T/24h)： 6.5
Power (KW)： 11 or 15
Weight (KG)： 680
Size (mm)： 1860*622*1275
Package： Standard package
Payment： L/C, T/T, D/A, D/P, O/A, Paypal
Enquiry

The series YZYX120 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

YZYX120 is the basic 2-step-squeezing spiral oil press. YZYX120-8 is 3-step-squeezing spiral oil press, which has larger press chest cavity, suitable for the users who have operating experience and stress on the oil content of dry cakes.

YZYX120-9 is 4-step-squeezing spiral oil press with lengthened press chest.

Main Features：

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

Oil Plants	Processing Capacity (t/24h)	Oil content of Dry cakes (%)	Oil yield efficiency (%)	Electric power consumption (kw.h/t)
Rapeseed	≥6.0	≤8.0	≥80	≤35
Cotton seed	≥6.0	≤7.5	≥75	≤55
Soybean	≥5.0	≤7.0	≥65	≤52
Peanut	≥6.0	≤8.0	≥91	≤35

Note:

① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

Technical Specification：
